Perfect Pump Sprayer (Available Versions: Form, Precast, Concrete, Extreme Concrete)Back to product index

Now available in four custom tailored versions to help ensure the best product application for your project.

Custom tailored commercial grade pump sprayer


Note: Choose Options to Buy Online

Find a Distributor
Additional Details

Exclusively designed for use with Nox-Crete products, the Perfect Pump Sprayer is now available in four custom tailored versions:

PFCS-PRE - Perfect Precast Sprayer
PFCS-FORM - Perfect Form Sprayer
PFCS-CON - Perfect Concrete Sprayer
PFCS-EXT - Perfect Extreme Concrete Sprayer

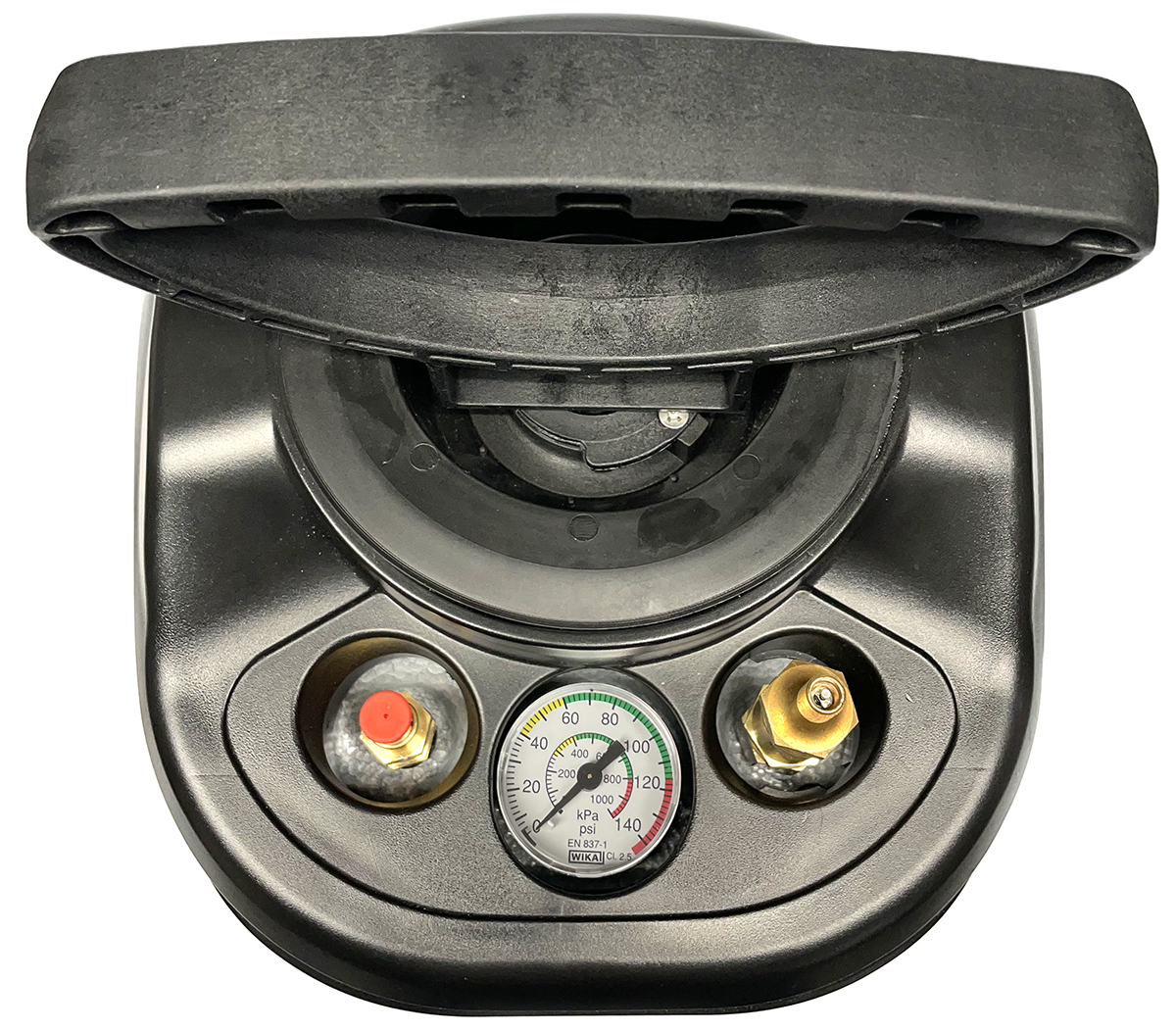

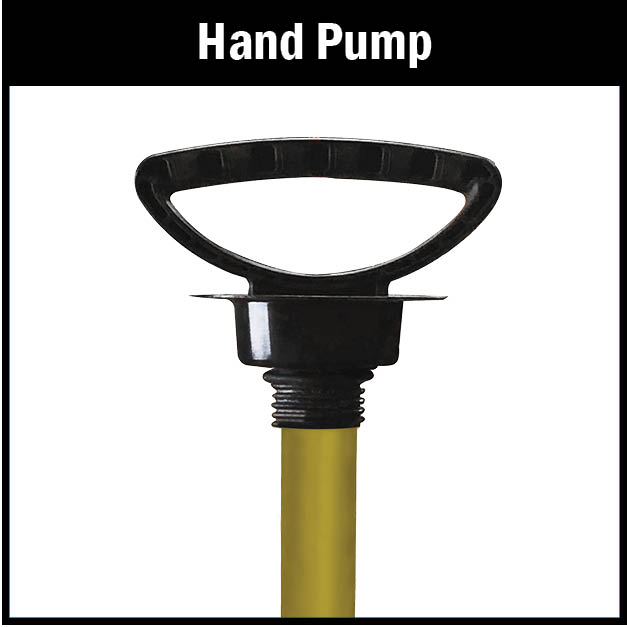

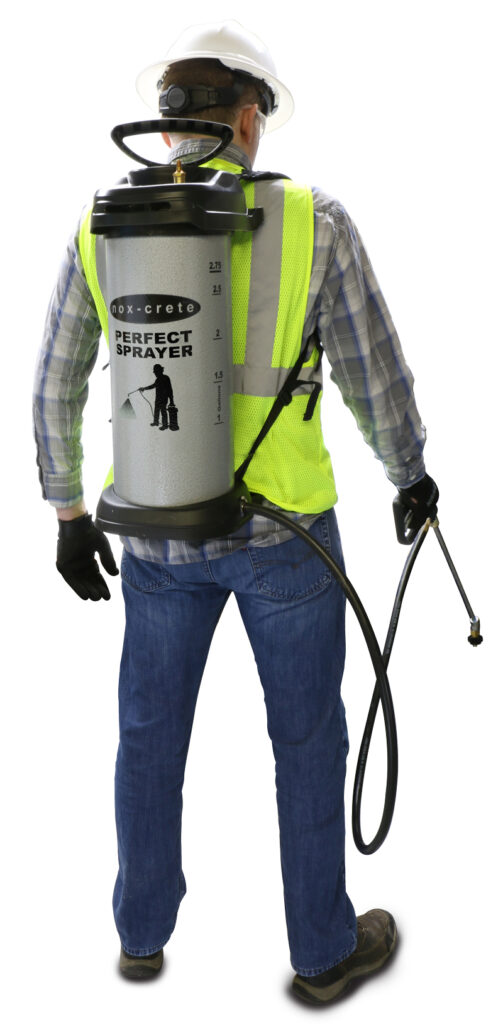

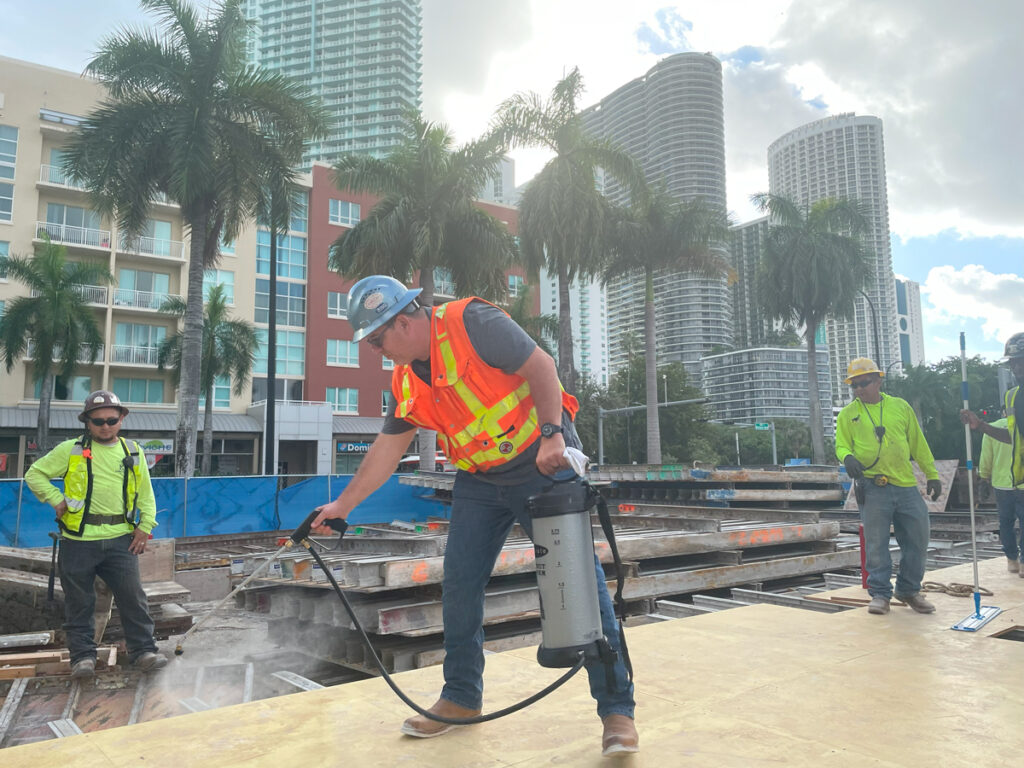

The Perfect Sprayer versions are perfectly designed for the application of Nox-Crete concrete form release agents, bondbreakers, curing compounds, floor sealers and other construction chemicals. The success of your project can often depend on applying these products correctly. Uniformly applying product is easy with the Perfect Sprayer. The sprayer has a 3.4 gal (12.9 L) capacity and two in-line filters that make cleaning easy and eliminate spray tip clogging. Use either the air fill inlet (standard on the Perfect Precast and optional on the other 3) or the hand pump to pressurize The Perfect Sprayer up to either 87 or 116 psi depending on the version of sprayer you have. Finally, a backpack-style carrying strap makes for easy transportation.

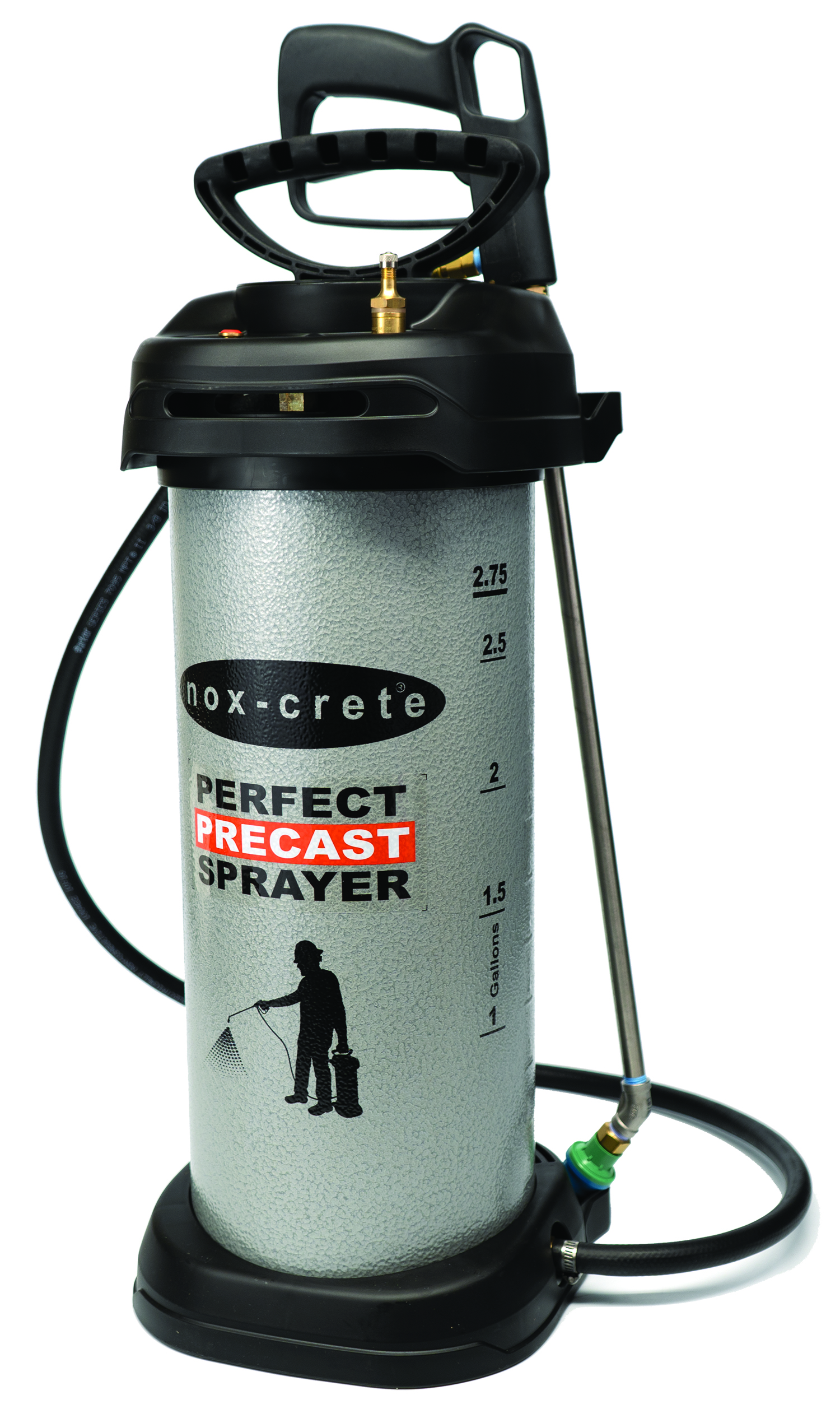

PFCS-PRE
Perfect Precast Sprayer (Commercial-grade sprayer specifically designed for light, consistent application of concrete form release agents for the precast industry)

  • 116 PSI (8 bar / 800 kpa)
  • Comes with relief valve, pressure gauge,

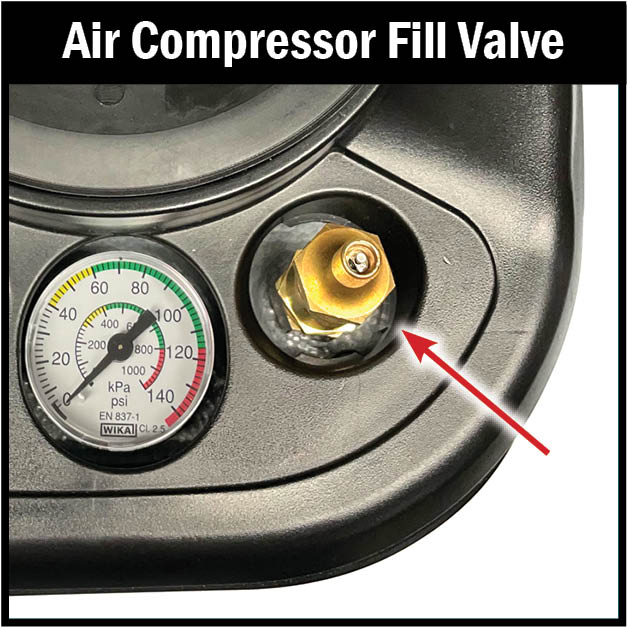

  • Comes with air compressor fill valve
  • Comes with a 40 PSI CF Valve
  • Comes with 2 tips (8001 & 8001-LP)

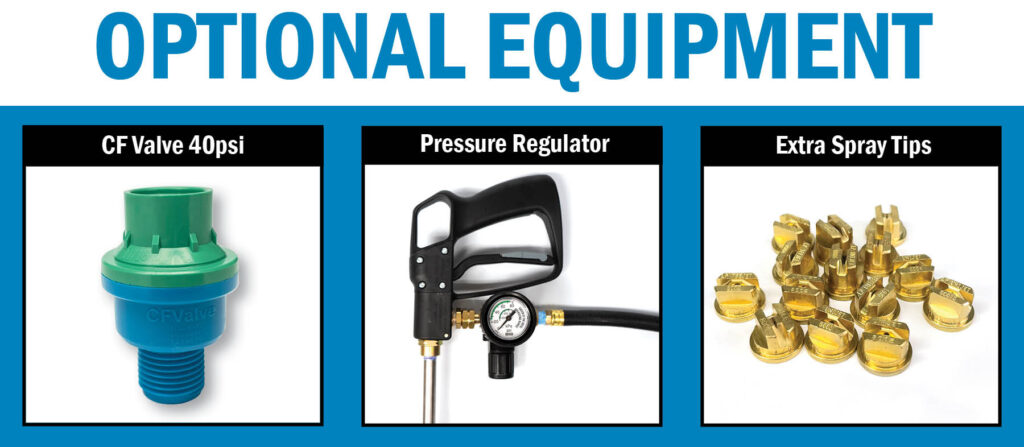

  • 60 PSI CF Valve (option available)
  • Extra tips (option available)

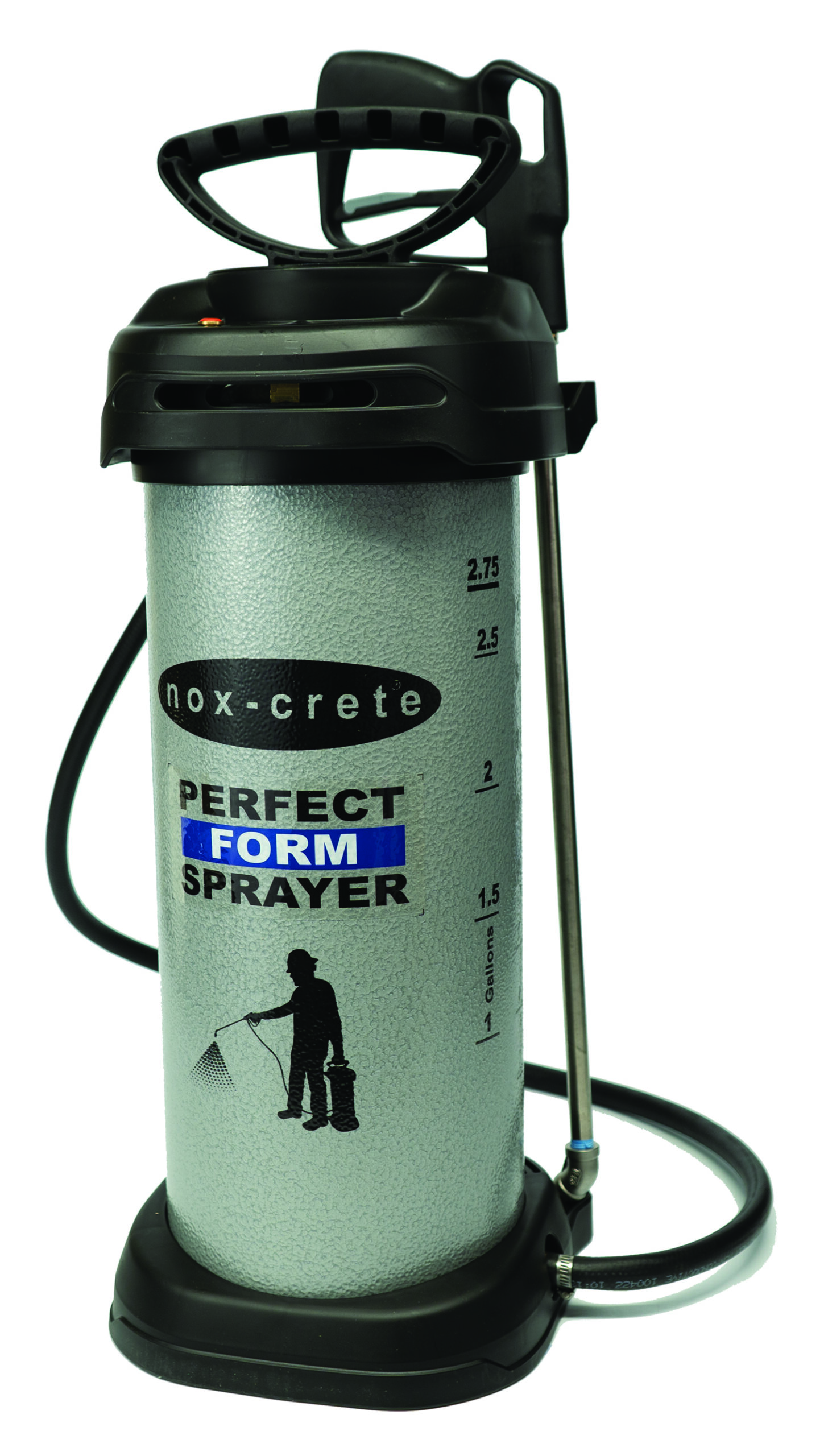

PFCS-FORM
Perfect Form Sprayer (Commercial-grade sprayer specifically designed for light and consistent application of concrete form release agents for commercial or residential applications)

  • 87 PSI (6 bar / 600 kpa)
  • Comes with a relief valve & pressure gauge
  • No CF Valve included
  • Comes with 2 tips (8001 & 8001-LP)
  • Pressure Regulator (option available)
  • Air compressor fill valve (option available)
  • Extra tips (option available)

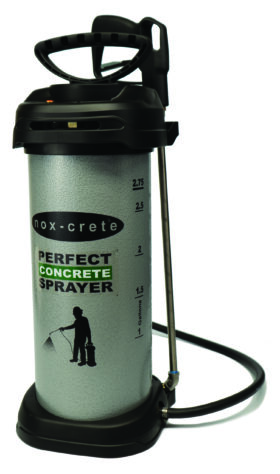

PFCS-FTK
Perfect Concrete Sprayer (bondbreakers, cure & sealers, decorative sealers, densifiers)

  • 87 PSI (6 bar / 600 kpa)
  • Comes with a relief valve & pressure gauge
  • Comes with 2 tips (8003-LP & 8005-LP)
  • No CF Valve included
  • Pressure Regulator (option available)
  • Air compressor fill valve (option available)
  • Extra tips (option available)

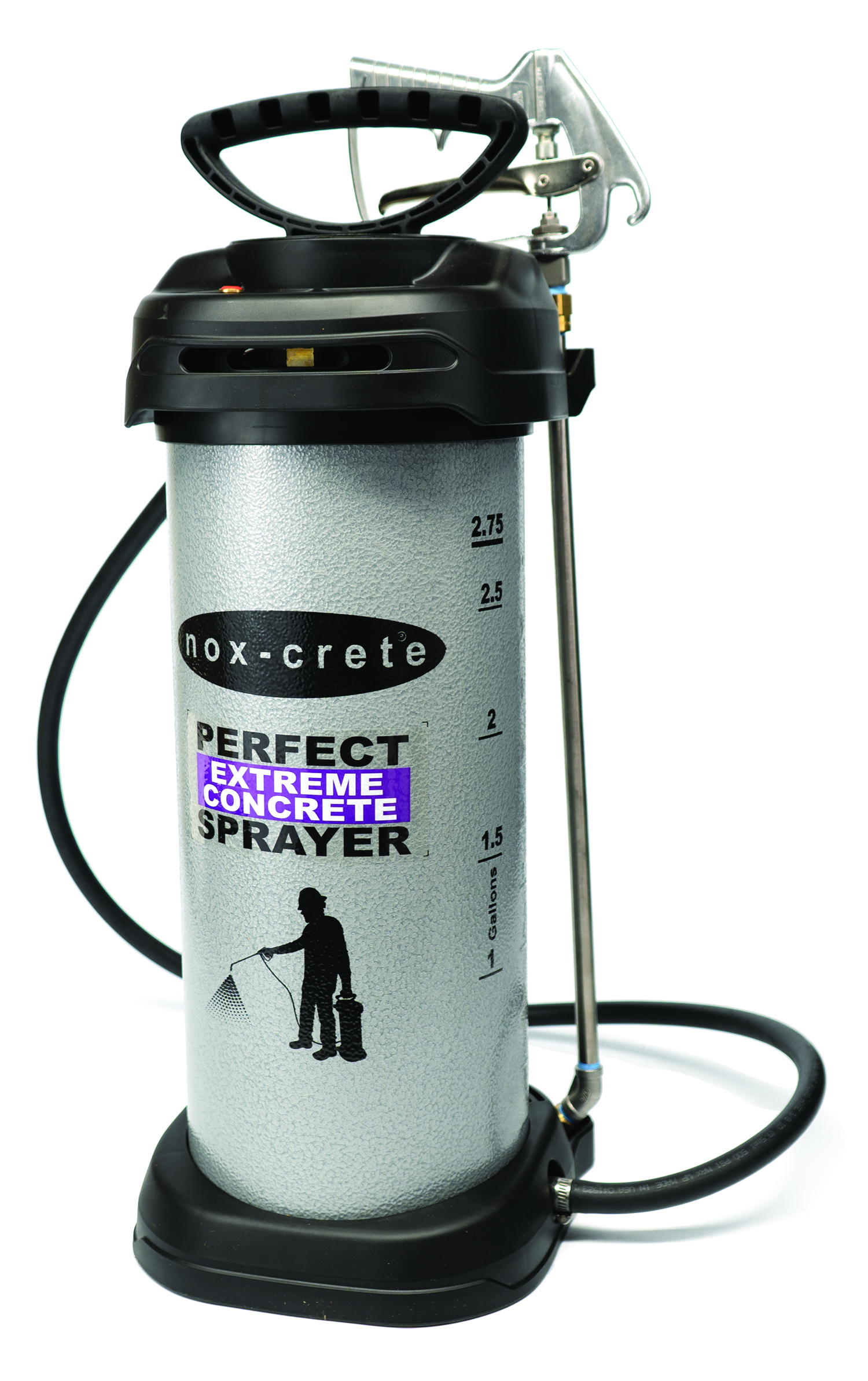

PFCS-EFT
(Commercial-grade sprayer specifically designed for consistent application of LOW VOC solvent-based bondbreakers, cure and sealers and decorative sealers)

  • 116 PSI (8 bar / 800 kpa)
  • Comes with a relief valve & pressure gauge
  • No CF Valve included
  • Comes with 2 tips (8003-LP & 8005-LP)
  • 5 ft. exempt solvent hose
  • Air compressor fill valve (option available)
  • Extra tips (option available)

Sprayer Tips
Using the right sprayer tip is important to ensure quality results. Refer to the Spray Tip Recommendation Guide (Included with your sprayer, also available under Resource Downloads on this page) before use as best practice.

Maintenance
Empty the contents of the sprayer and clean with the appropriate cleaning solutions (refer to Recommended Nox-Crete Cleaning Products included with sprayer and under Resource Downloads on this page)  because this will keep your sprayer in proper working condition. Leave the lid loose to allow the empty tank to air dry. In the event that the filter becomes plugged, remove the filter and wash out with appropriate solvent.

Accessory parts available:

  • Refer to individual sprayer flyers

- Contact us at 1-800-669-2738 for accessory parts

Please note: the Perfect Sprayers are specially designed for use with Nox-Crete products only.
